JNCASR hosts several additional instruments at its Advanced Research Facility. DST, DBT (LSRET) funds, and other government agencies support many of these instruments. The usability of these instruments may vary based on their current functionality. If you are interested, please feel free to get in touch using the email or contact number below.
*All payments must be made to the JNCASR bank account as per the payment procedure mentioned in payment procedure.

1 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Facility name and specifications Contact Experiments Usage charges (INR + 18% GST) Instrument images
Other Academia Industry and others

10X Chromium Controller (2020 model)

  • A microfluidics-based benchtop instrument designed for single-cell partitioning and barcoding
  • Detailed specifications
 Name: Dr. Narendra Nala
Email: narendranala@gmail.com
Phone: 080- 2208 2598		 Up to 8 samples/run, Run time -30-60min 2000 4000

Back to Top

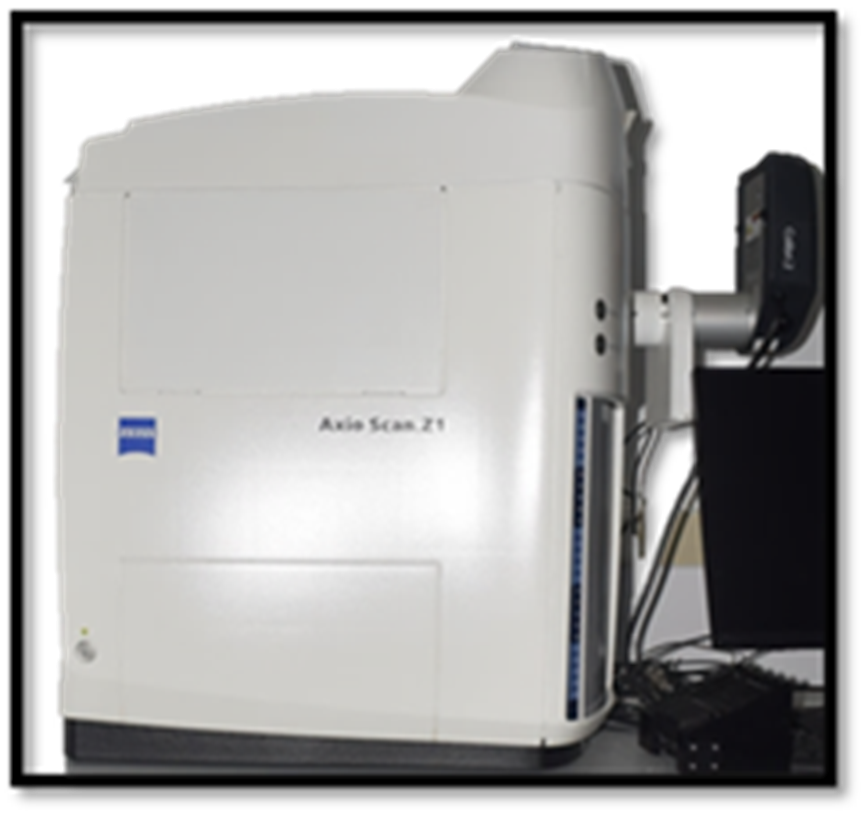

Axioscan Z1(Slide scanner)
(Zeiss)

  • fully digitalized microscope capable of imaging 100 slides (26mm*76mm) at a time
  • both bright field and fluorescence mode are available
  • Up to five fluorescence channels can be imaged using three synchronized high-speed filter wheels for excitation, beam splitting and emission.
  • Using standard filter cubes, it is possible to capture up to 9 fluorescence channels.
Name: Suma. B.S
Email: suma@jncasr.ac.in
Phone: 080- 2208 2866		 (Whole slide scanner) High throughput imaging, Bright field and fluorescence mode (Per Hour) 2000 4000

Back to Top

Bioanalyzer
(Agilent 2100)

  • Low throughput separation with up to 12 samples per run
  • Low sample consumption (1-5 µL; assay dependent)
  • Offers quality metric for RNA: RNA integrity number (RIN)
  • More details
Name: Dr. Narendra Nala
Email: narendranala@gmail.com
Phone: 080- 2208 2598		 Per Run 250 500

Back to Top

Bio-Rad CFX96 Real Time PCR Machine

  • Real Time PCR Machine for the evaluation of gene expression
  • Sample capacity- 96 wells
  • Sample volume: 1-50l (10-25l recommended)
  • More details
Name: Mohan V
Email: mohanv@jncasr.ac.in
Phone: 080- 2208 2712		 One run with 96 or lesser samples, 2 hour per run 250 500

Back to Top

Facility name and specifications Contact Experiments Usage charges (INR + 18% GST) Instrument images
Other Academia Industry and others

Back to Top

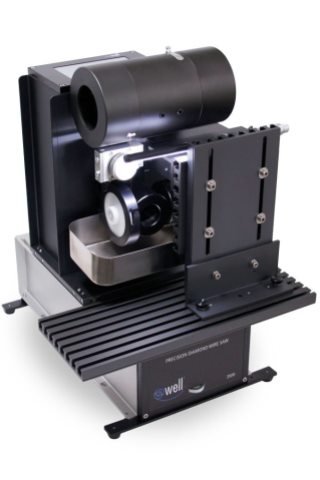

Diamond wire saw
3500 Premium (Well inc.)

  • Wire Dia: 0.03 mm
  • Diamond grit size: 60 micron
  • Sample holder: micrometer controlled (25 mm displacement @ 0.05 mm precision)
  • Sample size: preferably less than 5 cm.
 Name: Dr. Jay Ghatak
Email: jayghatak@jncasr.ac.in
Phone: 080- 2208 2731		 Diamond wire cuttting per sample per hour (including preparation time) 2000 4000

Back to Top

Dimple grinder
Dimple grinder II (Gatan)

  • Only for TEM sample preparation. Lapping and polishing must be done prior to use this instrument.
Name: Dr. Jay Ghatak
Email: jayghatak@jncasr.ac.in
Phone: 080- 2208 2731		 grinding with diamond paste, polishing with alumina suspension per sample per hour (including preparation time) 2000 4000

Back to Top

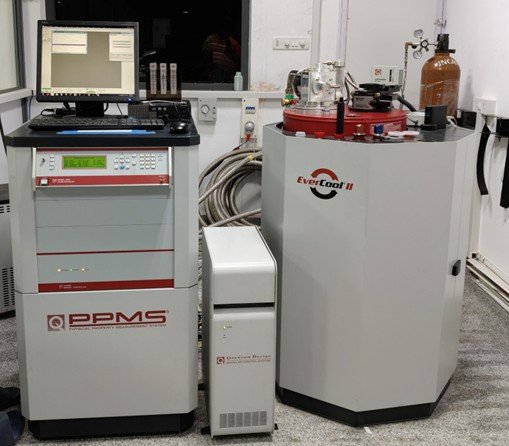

Physical property measurement system (PPMS)
EverCool II (Quantum Design)

  • Temperature range: 2 K to 300 K
  • Magnetic field: ±9 T
 Name: Shoubhik Deb
Email: shoubhik@jncasr.ac.in
Phone: 080- 2208 2921		 Electrical transport (ETO):R(T) / ρ(T) at 0 T (2–300 K) per day per sample 4000 8000
Electrical transport (ETO): Magnetoresistance R(H) /ρ(H) at one fixed T (field sweep up to ±9 T) per day per sample 6000 12000
Electrical transport (ETO):R(T) under fixed field per day per sample 4000 8000
Hall effect (ETO): ρxy(H)(±9 T sweep) per day per sample 6000 12000
Heat capacity Cp(T) at 0 T, per day per sample 4000 8000
Heat capacity Cp(T) with field, per day per sample 4000 8000

Back to Top

Precision ion polishing system (PIPS)
PIPS II (Gatan)

  • Accepted only 3 mm dia ready to load ultrathin (thickness less than 50 micron) TEM lamella.
 Name: Dr. Jay Ghatak
Email: jayghatak@jncasr.ac.in
Phone: 080- 2208 2731		 Ar polishing per sample per hour 5000 (Rs 3000 for every additional hour) 10000

Back to Top

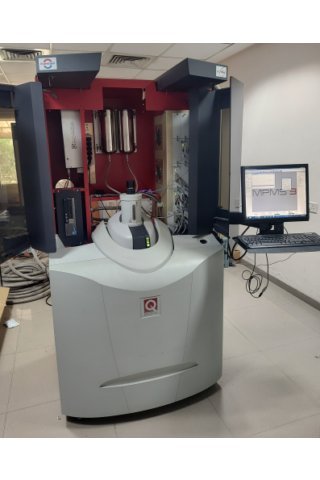

Superconducting Quantum Interference Device (SQUID)
Quantum Design MPMS3

  • Temperature range: 1.8K to 400K, 0.42 – 2.0 K with He3 option
  • Cooling rate: 20 K/ min (390 K to 10 K, max. 30 K/min) and 2 K/ min (10 to 1.8 K)
  • Temperature Accuracy: 0.01 K
  • Magnetic field: 7 Tesla
  • Charging rate: 500 Oe/sec
  • sensitivity: 10-8 emu to 2 emu
 Name: Nishit Patel
Email: nishitp@jncasr.ac.in
Phone: 080 2208 2857
ZFC, FC (one field) 2 to 300K (5 Hrs max per sample)
 3000 (per additional field Rs 1500) 6000 (per additional field Rs 3000)
M vs H (one temperature) (3 Hrs max per sample) 2000 (per additional temperature Rs 1000) 4000 (per additional temperature Rs 2000)
MvsT in one field and MvsH in one temperature He 3 option per sample (48 Hr per sample) 15000 30000

Back to Top
